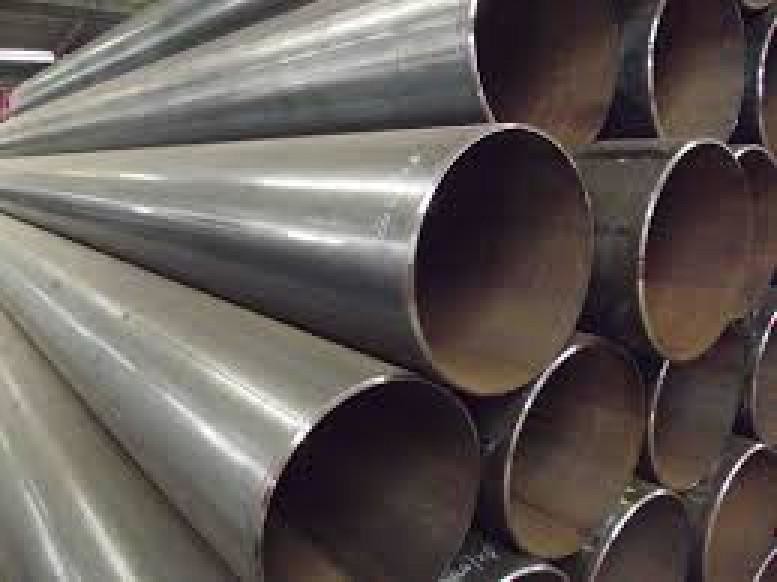

Power Plant ASTM A333 Gr. 6 Seamless Steel Pipe for Low Temperature Service

ASTM A333 Grade 6 is the part of standard covers wall seamless and welded carbon and alloy steel pipe intended for use at low temperatures. ASTM A333 Grade 6 alloy pipe shall be made by the seamless or welding process with the addition of no filler metal in the welding operation.

1. Standards:
ASTM A333: Standard Specification for Seamless and Welded Steel Pipe for Low-Temperature Service

2. Applications of ASTM A333 Grade 6 Seamless Pipes:

1. Refineries
2. Power Plants
3. Boilers
4. Ship Building
5. Heat Exchangers
6. Condensers
7. Paper & Pulp
8. Marine Applications
9. Nuclear Power
10. Fossil Fuel Power Plants

3. Ordering Information

Quantity (feet, centimeters, or number of lengths),

Name of material (seamless pipe),

Grade (Gr.6),

Size (NPS or outside diameter and schedule number of average wall thickness),

Lengths (specific or random),

End finish

Optional requirements

Test report required

4. Chemical Requirements

5. Manufacturing Process

Raw Material Inspection → Cold Centering → Heating → Piercing & Rolling → SIzing → Heat Treatment → Testing → Finishing → NDE → Visual & Dimension Inspection → Marking → Storing & Shipping

6. Mechanical Properties

Tensile Strength, min: 60ksi/415MPa

Yield Strength, min: 35ksi/240MPa

7. Available Size Range

8. Supplementary Requirements

S1. Subsize Impact Specimens

When the size of the finished pipe is insufficient to permit obtaining subsize impact specimens, testing shall be a matter of agreement between the manufacturer and the purchaser.

S2. Requirements for Pipe for Hyudrofluoric Acid Alkylation Service

S2.1 Pipe shall be provided in the normalized heat-treated condition.

S2.2 The carbon equivalent (CE), based on heat analysis, shall not exceed 0.43% if the specified wall thickness is equal to or less than 1 in. (25.4mm) or 0.45% if the specified wall thickness is greater than 1 in. (25.4mm).

S2.3 The carbon equivalent shall be determined using the following formula:

CE=C+Mn/6+(Cr+Mo+V)/d+(Ni+Cu)/15

S2.4 Based upon heat analysis in mass percent, the vanadium content shall not exceed 0.02%, the niobium content shall not exceed 0.02% and the sum of the vanadium and niobium contents shal not exceed 0.03%.

S2.5 Based upon heat analysis in mass percent, the sum of the nickel and copper contents shall not exceed 0.15%.

S2.6 Based upon heat analysis in mass percent, the carbon content shall not be less than 0.18%.

S2.8 The designation "HF-N" shall be stamped or marked on each pipe to signify that the pipe complies with this supplementary requirement.

Since 2006, NEW FORCE has been engaged in high end seamless steel pipe products such as thermal power pipes, nuclear power pipes, petrochemical & refinery pipes, mechanicl pipes, oil & gas pipes, and gas cylinder pipes. The company have complete QA system and various inspection methods. New Force has been growing to a leading large diameter seamless pipe supplier with production range 8 "-56" in OD and wall thickness from 9.53mm up to 140mm.

The production covers many industries such as Thermal power, Petrochemical & Refinery, Boiler, Mechanical, Oil & gas, Coal and shipbuilding. The company is the domestic unique technology private enterprise which has the most complete variety of seamless steel pipes.

We always believe that our success is directly related to our strict quality control and professional service.

NEW FORCE customers are widely distributed throughout the world, such as Southeast Asia, Middle East, North America, South America, Europe, Africa.

NEW FORCE - your trusted and long term partner for piping solutions, providing with innovative solutions, quality materials and timely delivery.
