Brand Name : | NEW FORCE |
Model Number : | P91 |
Certification : | MTC |
Payment Terms : | L/C, T/T |
Supply Ability : | 1000 tons per month |
Delivery Time : | one week |
We are specialized in supplying high pressure boiler tube tube for more than 10 years and have rich experience. We own professional technicians and engineers, professional testing equipment, rich experience in delivery. We have more than 10 years of cooperative customers.
Our high pressure boiler tubes are usually operated under high temperature and high pressure, and pipes are exposed to high temperature smoke. Oxidation and corrosion occur under the action of gas and water vapor. Therefore, the steel pipe is required to have high durability, high oxidation resistance, and good structural stability. In addition to ensuring chemical composition and mechanical properties, the high pressure boiler tube must have The hydraulic test is carried out one by one, and the flaring and flattening tests are to be carried out.

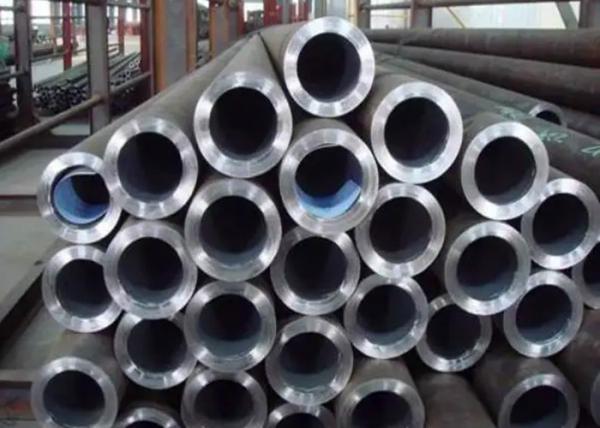

Product | A335 P91 High Pressure Boiler Heat Exchange Alloy Seamless Steel Pipe |
Standard | ASTM A335 |
Material | Gr.1,Gr.3,Gr.4,Gr.6,Gr.7,Gr.8,Gr.9,Gr.10,Gr.11 |
Surface | Black paint, varnish, oil, galvanized |
Pipe Length | 5.8 m to 12 m, can be customized according to the length requirements |
Pipe Ends | Plain Ends, Beveled Ends |
End Protector | 1. Plastic caps (small OD) 2. Iron protector (large OD) |
Application | Fluid pipe, oil pipe, gas pipe, structure pipe, boiler tubes |
Test | Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size |
Productivity | 50000 tons per month |
Min Order | 20 ton |
Remark | Special design available according to requirement |
Chemical Composition of A335 P91 Seamless Heat Exchange High Pressure Boiler Tube
Element | C | Mn | P | S | Si | Cr | Mo | Others |
Content, % | 0.08-0.12 | 0.30-0.60 | ≤0.020 | ≤0.010 | 0.20-0.50 | 8.00-9.50 | 0.85-1.05 | - |
*V:0.18-0.25, N:0.030-0.070, Ni:≤0.040, Al:≤0.020, Cb:0.06-0.10, Ti:≤0.01, Zr:≤0.01.
Size tolerance of A335 P91 Seamless Heat Exchange High Pressure Boiler Tube
Outer diameter mm | Tolerance of OD mm | Wall thickness mm | Tolerance of W.T mm |
31.8-50 | +/- 0.3% | 3-20 | +/- 7.5% |
51-114 | +/- 1% | 3-20 | +/- 8.0% |
127-219 | +/- 1% | 5-60 | +/- 8.0% |
Usage of A335 P91 Seamless Heat Exchange High Pressure Boiler Tube:
Higher pressure, low & medium pressure boiler and steam header
pipes, Petrochemical industry pipes.
Our service
FAQ:
1. Can I request to change the form of packaging and
transportation?
A: Yes, We can change the form of the packaging and transportation
as per your request.
2. Can I request to advance the shipment?
A: It depends on whether there is sufficient inventory in our
warehouse.
3. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings.
4. What's your terms of payment?
A: T/T, L/C.
5.Do you accept custom design on size?
A: Yes, if the size is reasonable.
![]() |
